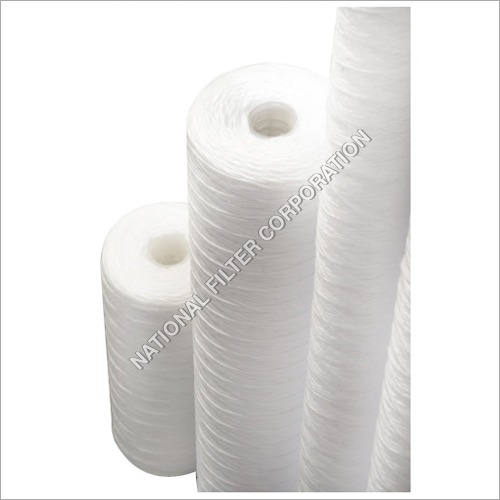

Wound Filter Cartridge

Wound Filter Cartridge
Wound Filter Cartridge
Send Inquiry
Product Code : 17
Product Description

Wound Filter Cartridge

Polypropylene Pleated filter cartridges are precisely manufactured for use in critical filtration applications within food, pharmaceuticals, biotech, dairy, beverages, brewing, semiconductor, water treatment & other demanding process industries.

Polypropylene pleated cartridges use the very latest gradient density micro fiber media technology to provide a combination of excellent micro ratings, high flow rates and high contaminant holding capacities. A special combination of polypropylene media with variation in the fiber diameter has created a gradient density matrix, ranging from open on the outside to finer on the inside, thereby providing a filter with in filter, which considerably increases contamination holding capacity & throughputs.

Features & Benefits

  • Standard and customizes sizes fit most housings
  • Filtration rating from 1 to 100 Micron
  • High strength & pressure resistance
  • Manufactured in continuous length
  • Full range of sizes from 10” to 60” Length
  • Excellent flow with low pressure drop
  • High dirt holding capacity
  • Compatible with a wide range of fluids
  • NSF & FDA approved

Technical Specifications

  • Sizes: 10”,20”,30”40” , 60” Long
  • Micron Rating: 0.5 to 100m
  • Outer Diameter: 58 mm to 200mm
  • Inner Diameter: 25mm


  • Double Open Type (DOE Type)
  • Code 7 (226 O Ring Design)


  • Polypropylene with polypropylene core
  • Cotton with stainless steel core


Polypropylene wound filter cartridge

  • Organic Acids
  • Oils
  • Concentrated Alkalis
  • Water
  • Organic solvents
  • Electroplating solution

Cotton wound filter cartridge

  • Vegetable Oils
  • Dilute Acids
  • Organic solvents
  • Portable liquids
  • Alkalis
